CHI Interconnect & Coherency

CHI Home Node — Pipelined + Sharer Vectors (HN-F v5)

The multi-sharer, multi-outstanding point-of-coherency for a snoopable AMBA 5 CHI region — N_TXN pipelined coherent-read slots on a full…

Request this IP →Browse the catalog

ASIL-B

target

90.11%

SPFM

89.82%

LFM

PASS

FMEDA

13.0K

gates

2.33.0

version

Interfaces at a glance

Block diagram

Place-and-route snapshot

Physical implementation

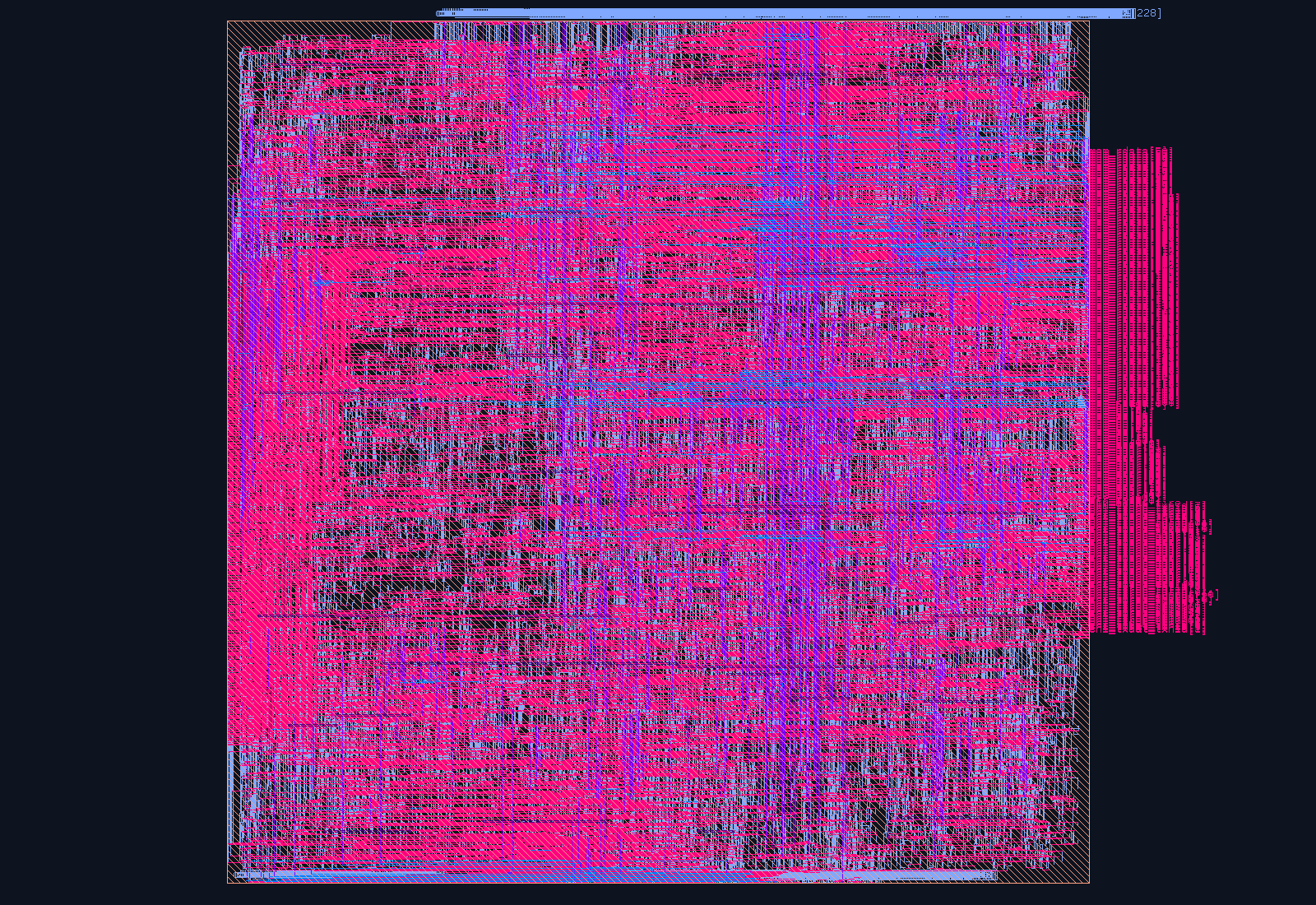

CHI Home Node — Pipelined + Sharer Vectors (HN-F v5) routed place-and-route layout on the Nangate45 PDK — A real synthesis and place-and-route pass on this RTL, routed on the open Nangate45 / FreePDK45 PDK — evidence the block closes physically, not just in simulation. Target-PDK timing, area, and power sign-off figures are shared under NDA.

The deliverable

What you’re licensing

The multi-sharer, multi-outstanding point-of-coherency for a snoopable AMBA 5 CHI region — N_TXN pipelined coherent-read slots on a full… It is delivered as a licensable soft-IP block engineered as an ASIL-B Safety Element out of Context — not just RTL, but the complete functional-safety work package needed to carry it into an ISO 26262 program:

Synthesizable RTL

Portable, vendor-neutral SystemVerilog that drops onto your existing SoC fabric — no foundry or EDA-tool lock-in.

Per-IP FMEDA report

SPFM / LFM / PMHF computed against the ASIL target per ISO 26262-5 — the quantitative analysis your assessor asks for.

Safety manual

Assumptions of use, the safety mechanisms and their diagnostic coverage — written to drop straight into your safety case.

IP-XACT + integration docs

A machine-readable descriptor plus register and integration documentation for fast, low-risk bring-up.

Self-checking testbench

A self-checking testbench and a one-command build, so you can reproduce every claim on day one.

What it is

chi_hn_f_v5 is a synthesizable SystemVerilog AMBA 5 CHI Home Node (HN-F) that pipelines coherent traffic across N_TXN outstanding read slots while keeping full sharer-vector coherence — a {valid, tag, sharers[N_RNF], unique} directory, so more than one RN-F can hold a line Shared at once, not just a single owner.

Key Features

Sharer-vector directory: {valid, tag, sharers[N_RNF], unique} per line, even-parity protected and checked on every CAM lookup (err_code 2)
ReadShared adds a sharer (downgrading a unique owner via SnpShared first); ReadUnique runs a per-slot multi-snoop SnpUnique loop invalidating every other sharer, one at a time, within one transaction
N_TXN-deep coherent-read pipeline (default 2): while one slot works its multi-snoop loop, another slot accepts + looks up + snoops a different line; per-line hazard stall is the only interlock (formally proven, a_hazard)
Per-slot held-line inline SECDED (ecc_pkg, NW×64-bit words): the returned coherent line is corrected before being forwarded as TXDAT CompData; an uncorrectable double-bit is err_code 2, aggregated with the directory sharer-vector parity check
SN-F read error surfaced as a fault AND propagated as a CHI RespErr (DataError) on CompData (err_code 3); outstanding-transaction watchdog (err_code 4); write-FSM complementary diverse-DMR shadow (err_code 9); config + request-address parity (err_code 1)
Clean-only snoop responses in this tier (write-through RN-F shells assumed) — every coherent miss, including one that just invalidated a sharer, sources from the SN-F memory port; dirty/DCT forwarding is the chi_hn_f_v6 tier
Formal bmc (write-FSM DMR, per-line hazard a_hazard, non-empty snoop set a_snoop_nz) plus a dedicated VIP-style single-writer/multiple-reader (SWMR) directory-coherency proof shared with the v6/v7 sharer-vector family

Standards & Compliance

Arm AMBA 5 CHI (Issue E); ISO 26262 ASIL-B SEooC

Functional Safety

ASIL-B (SEooC) · SPFM 90.11% · LFM 89.82% · PASS

ISO 26262:2018 · FMEDA available · Safety Manual included

Register Map

See datasheet for full register reference.

Getting Started

// Minimal instantiation
chi_hn_f_v5 #(
 .ADDR_W(6)
) u_chi_hn_f_v5 (
 .clk (clk),
 .rst_n (rst_n),
 // APB4
 .p_paddr (paddr),
 .p_psel (psel),
 .p_penable (penable),
 .p_pwrite (pwrite),
 .p_pwdata (pwdata),
 .p_prdata (prdata),
 .p_pready (pready),
 // Safety
 .err_clear (1'b0),
 .err_valid (err_valid),
 .err_code (err_code)
);

Configure via the CTRL register after reset to enable the IP and set operating parameters. Monitor err_valid / err_code for any safety faults reported by the built-in safety monitor.

Applications

Where it fits

Typically deployed in multi-core compute clusters that need cache coherency with a defensible ordering proof.

The case

Why license it, not build it

Skip 12–18 months

The FMEDA and the safety case are already generated. You integrate a finished safety element — you don’t stand up a safety-IP program to originate one.

One vendor, one safety story

Every block in the catalog shares the same safety architecture, fault-reaction model, and FMEDA methodology — so subsystems roll up cleanly.

Verified, not vapor

The RTL builds and passes today; the safety metrics come from analysis and fault injection against real RTL, not a datasheet promise.

Interested in CHI Home Node — Pipelined + Sharer Vectors (HN-F v5)?

Pricing, the per-IP FMEDA, safety manual, and RTL data room are shared under a mutual NDA.

Talk to us →See related IP

Figures are pre-silicon engineering-grade estimates for a Safety Element out of Context (SEooC); final ASIL sign-off is the integrator’s, supported under NDA. FMEDA and Safety Manual available under NDA.
