CHI Interconnect & Coherency

CHI RN-F with Direct Cache Transfer

AMBA 5 CHI Request Node (RN-F) retaining cache agent — holds ReadUnique/ReadShared lines, dirties them locally…

Request this IP →Browse the catalog

ASIL-B

target

92.28%

SPFM

90.63%

LFM

PASS

FMEDA

5.8K

gates

0.1.0

version

Interfaces at a glance

Block diagram

Place-and-route snapshot

Physical implementation

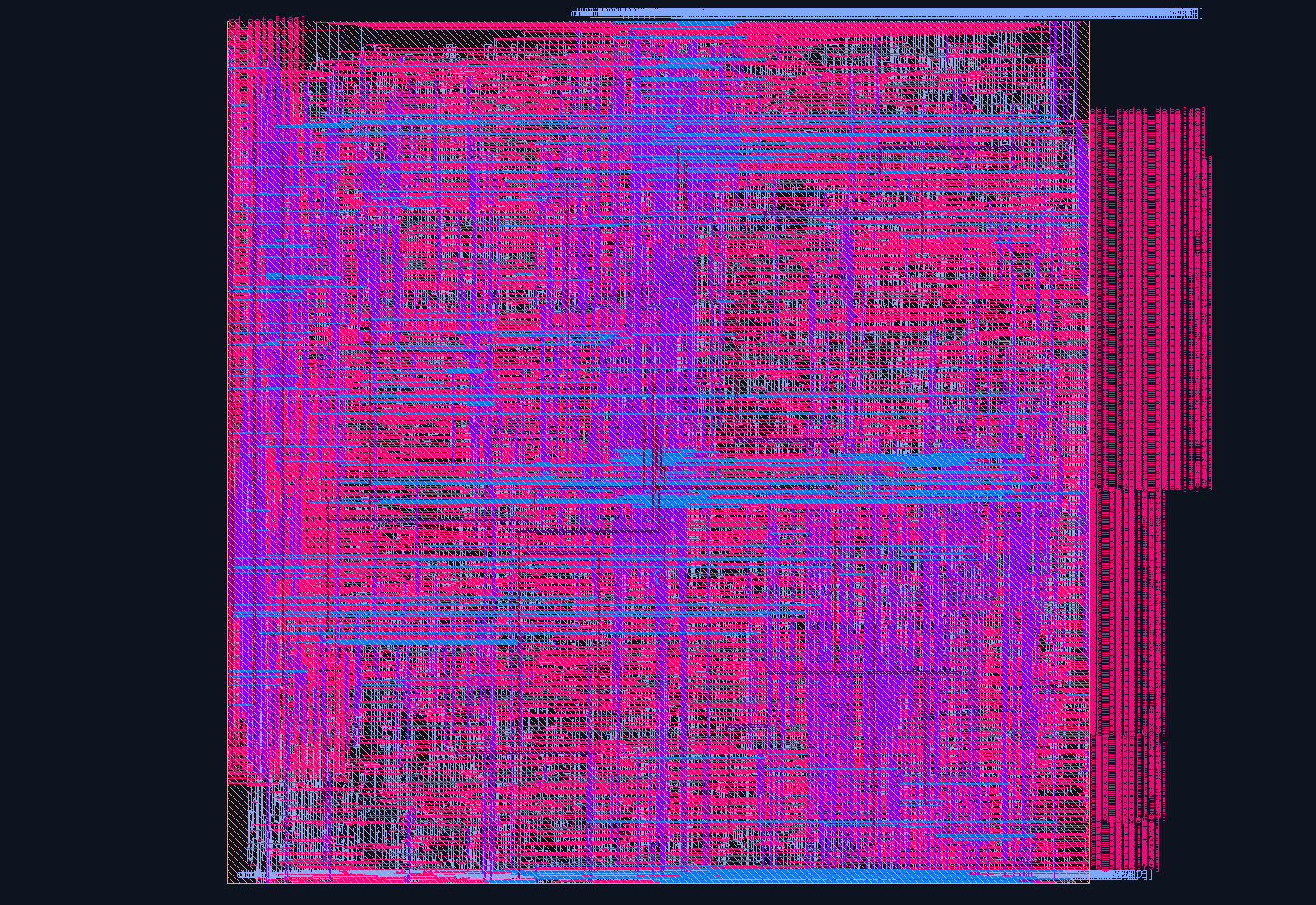

CHI RN-F with Direct Cache Transfer routed place-and-route layout on the Nangate45 PDK — A real synthesis and place-and-route pass on this RTL, routed on the open Nangate45 / FreePDK45 PDK — evidence the block closes physically, not just in simulation. Target-PDK timing, area, and power sign-off figures are shared under NDA.

The deliverable

What you’re licensing

AMBA 5 CHI Request Node (RN-F) retaining cache agent — holds ReadUnique/ReadShared lines, dirties them locally… It is delivered as a licensable soft-IP block engineered as an ASIL-B Safety Element out of Context — not just RTL, but the complete functional-safety work package needed to carry it into an ISO 26262 program:

Synthesizable RTL

Portable, vendor-neutral SystemVerilog that drops onto your existing SoC fabric — no foundry or EDA-tool lock-in.

Per-IP FMEDA report

SPFM / LFM / PMHF computed against the ASIL target per ISO 26262-5 — the quantitative analysis your assessor asks for.

Safety manual

Assumptions of use, the safety mechanisms and their diagnostic coverage — written to drop straight into your safety case.

IP-XACT + integration docs

A machine-readable descriptor plus register and integration documentation for fast, low-risk bring-up.

Self-checking testbench

A self-checking testbench and a one-command build, so you can reproduce every claim on day one.

Key Features

Retains the line from ReadUnique as Unique-Clean (UC) or from ReadShared as Shared-Clean (SC); a local wr_req against a held UC line moves it to Unique-Dirty (UD) with zero CHI bus traffic
Direct Cache Transfer (DCT): a snoop hitting a UD line forwards the SECDED-corrected data as SnpRespData on TXDAT — cache-to-cache, the Home Node never reads memory for that line
Clean-hit or miss answers the ordinary no-data SnpResp on TXRSP; SnpUnique invalidates the held line, SnpShared retains a shared-clean copy (even after a dirty forward: UD→SC, not UD→I)
Inline SECDED (ecc_pkg 4×64b) on the held line — single-bit upsets corrected transparently before the line ever leaves the RN, double-bit upsets flagged err_code 2
Complementary diverse-DMR shadows on both the ReadUnique/ReadShared engine FSM and the independent snoop-response FSM, proven non-divergent in formal BMC (a_est_dmr/a_sst_dmr) — err_code 9
Config-register even parity (err_code 1), CHI RespErr on a returning CompData propagated as err_code 3, and a ReadUnique/ReadShared-hang watchdog (err_code 4) — all through the shared safety_monitor
Single synchronous clock domain, no CDC in this block (CHI flit/credit ports synchronous-by-spec); FMEDA ASIL-B PASS — SPFM 92.28%, LFM 90.63%, PMHF 9.66×10⁻⁹/h

Standards & Compliance

AMBA 5 CHI (Issue E-class RN-F); ISO 26262 ASIL-B SEooC (SPFM 92.28%, LFM 90.63%, PMHF 9.66×10⁻⁹/h)

Functional Safety

ASIL-B (SEooC) · SPFM 92.28% · LFM 90.63% · PASS

ISO 26262:2018 · FMEDA available · Safety Manual included

Register Map

Offset	Register	Description
`0x00`	CTRL	RW [0]=EN
`0x0C`	STATUS	RO [1:0]=line_state (I/UC/UD) [10:8]=err_code [11]=err_valid

Getting Started

// Minimal instantiation
chi_rnf_dct #(
 .ADDR_W(6)
) u_chi_rnf_dct (
 .clk (clk),
 .rst_n (rst_n),
 // APB4
 .p_paddr (paddr),
 .p_psel (psel),
 .p_penable (penable),
 .p_pwrite (pwrite),
 .p_pwdata (pwdata),
 .p_prdata (prdata),
 .p_pready (pready),
 // Safety
 .err_clear (1'b0),
 .err_valid (err_valid),
 .err_code (err_code)
);

Configure via the CTRL register after reset to enable the IP and set operating parameters. Monitor err_valid / err_code for any safety faults reported by the built-in safety monitor.

Applications

Where it fits

Typically deployed in multi-core compute clusters that need cache coherency with a defensible ordering proof.

The case

Why license it, not build it

Skip 12–18 months

The FMEDA and the safety case are already generated. You integrate a finished safety element — you don’t stand up a safety-IP program to originate one.

One vendor, one safety story

Every block in the catalog shares the same safety architecture, fault-reaction model, and FMEDA methodology — so subsystems roll up cleanly.

Verified, not vapor

The RTL builds and passes today; the safety metrics come from analysis and fault injection against real RTL, not a datasheet promise.

Interested in CHI RN-F with Direct Cache Transfer?

Pricing, the per-IP FMEDA, safety manual, and RTL data room are shared under a mutual NDA.

Talk to us →See related IP

Figures are pre-silicon engineering-grade estimates for a Safety Element out of Context (SEooC); final ASIL sign-off is the integrator’s, supported under NDA. FMEDA and Safety Manual available under NDA.

circuit-design.space · +1-971-357-1400 · anovickis@circuit-design.space
