MIPI CSI-2 Receiver

Digital MIPI CSI-2 v2.0 packet-protocol receiver that composes with any external D-PHY Rx macro and protects every frame with header ECC…

Request this IP →Browse the catalog

ASIL-B

target

91.00%

SPFM

89.98%

LFM

PASS

FMEDA

6.6K

gates

0.1.0

version

Interfaces at a glance

Block diagram

Place-and-route snapshot

Physical implementation

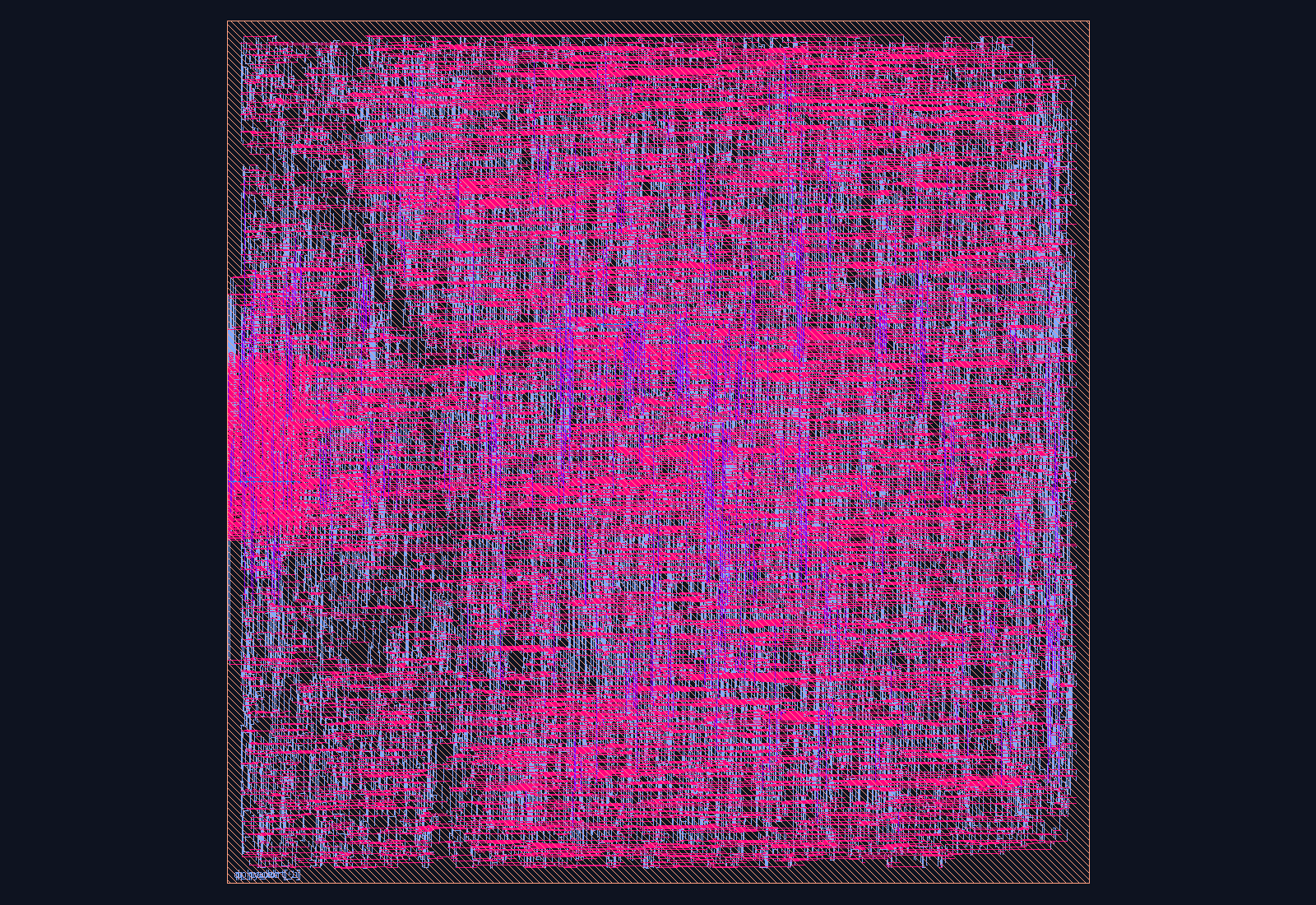

MIPI CSI-2 Receiver routed place-and-route layout on the Nangate45 PDK — A real synthesis and place-and-route pass on this RTL, routed on the open Nangate45 / FreePDK45 PDK — evidence the block closes physically, not just in simulation. Target-PDK timing, area, and power sign-off figures are shared under NDA.

The deliverable

What you’re licensing

Digital MIPI CSI-2 v2.0 packet-protocol receiver that composes with any external D-PHY Rx macro and protects every frame with header ECC… It is delivered as a licensable soft-IP block engineered as an ASIL-B Safety Element out of Context — not just RTL, but the complete functional-safety work package needed to carry it into an ISO 26262 program:

Synthesizable RTL

Portable, vendor-neutral SystemVerilog that drops onto your existing SoC fabric — no foundry or EDA-tool lock-in.

Per-IP FMEDA report

SPFM / LFM / PMHF computed against the ASIL target per ISO 26262-5 — the quantitative analysis your assessor asks for.

Safety manual

Assumptions of use, the safety mechanisms and their diagnostic coverage — written to drop straight into your safety case.

IP-XACT + integration docs

A machine-readable descriptor plus register and integration documentation for fast, low-risk bring-up.

Self-checking testbench

A self-checking testbench and a one-command build, so you can reproduce every claim on day one.

What it is

A synthesizable SystemVerilog MIPI CSI-2 v2.0 receiver that decodes the packet protocol layer above an external D-PHY Rx hard macro — ECC-checked headers, CRC-verified payloads, virtual-channel/data-type filtering, and frame/line sync events — into a 32-bit pixel bus for the imaging pipeline.

Key Features

1 or 2 D-PHY lane support (LANES parameter), digital-only and technology-independent — composes with any byte-clock/byte-data D-PHY Rx macro
Header ECC: Hamming(6,1) over DI+WC[15:0] per MIPI CSI-2 §9.7 — single-bit errors silently corrected, double-bit errors discard the packet and flag err\_code 2
Payload CRC-16/CCITT (x^16 + x^12 + x^5 + 1, seed 0xFFFF) over every long-packet payload — mismatch sets err\_code 3, STATUS.CRC\_ERR, and increments ERR\_CNT[15:8]
Diverse-DMR packet FSM: a shadow state register mirrors the 6-state receive FSM every cycle; divergence raises err\_code 9
Output FIFO (32×48-bit FWFT) with per-entry SECDED storage plus complementary-DMR read/write pointer shadows — a pointer stuck-at that would alias to a wrong-but-valid word is caught and folded into err\_code 2
Virtual-channel (VC\_ENABLE[3:0]) and data-type (DT\_FILTER[5:0]) filtering, plus frame/line sync event generation (frame start/end, line start/end) into the pixel-output sideband
APB4 slave, 8 registers (CTRL/STATUS/INTR/INTR_EN/FRAME_CNT/ERR_CNT/VC_ENABLE/DT_FILTER); config-register even parity → err\_code 1; shared safety\_monitor aggregation with maskable csi2\_irq\_o

Standards & Compliance

MIPI CSI-2 v2.0 packet protocol; composes with external MIPI D-PHY v1.2+ Rx macros; APB4 slave register interface; ISO 26262 ASIL-B SEooC (SPFM 91.00%, LFM 89.98%, PMHF 1.14×10⁻⁸/h — gated FMEDA on a measured element count)

Functional Safety

ASIL-B (SEooC) · SPFM 91.00% · LFM 89.98% · PASS

ISO 26262:2018 · FMEDA available · Safety Manual included

Register Map

Offset	Register	Description
`0x00`	CTRL	RW [0]=EN, [2:1]=LANES, [6:3]=VC_FILTER, [7]=RESET
`0x04`	STATUS	RO [0]=FRAME_ACTIVE, [1]=LINE_ACTIVE, [2]=FIFO_EMPTY, [3]=ECC_ERR, [4]=CRC_ERR — NOTE: bits [3]/[4] are single-cycl…
`0x08`	INTR	W1C [0]=FRAME_START, [1]=FRAME_END, [2]=ECC_ERR, [3]=CRC_ERR, [4]=FIFO_OVF
`0x0C`	INTR_EN	RW same bits
`0x10`	FRAME_CNT	RO frames received

…3 more registers — see datasheet for the full table.

Getting Started

// Minimal instantiation
csi2_rx #(
 .ADDR_W(6)
) u_csi2_rx (
 .clk (clk),
 .rst_n (rst_n),
 // APB4
 .p_paddr (paddr),
 .p_psel (psel),
 .p_penable (penable),
 .p_pwrite (pwrite),
 .p_pwdata (pwdata),
 .p_prdata (prdata),
 .p_pready (pready),
 // Safety
 .err_clear (1'b0),
 .err_valid (err_valid),
 .err_code (err_code)
);

Configure via the CTRL register after reset to enable the IP and set operating parameters. Monitor err_valid / err_code for any safety faults reported by the built-in safety monitor.

Applications

Where it fits

Typically deployed in instrument clusters, camera pipelines, and safety-monitored display paths.

The case

Why license it, not build it

Skip 12–18 months

The FMEDA and the safety case are already generated. You integrate a finished safety element — you don’t stand up a safety-IP program to originate one.

One vendor, one safety story

Every block in the catalog shares the same safety architecture, fault-reaction model, and FMEDA methodology — so subsystems roll up cleanly.

Verified, not vapor

The RTL builds and passes today; the safety metrics come from analysis and fault injection against real RTL, not a datasheet promise.

Interested in MIPI CSI-2 Receiver?

Pricing, the per-IP FMEDA, safety manual, and RTL data room are shared under a mutual NDA.

Talk to us →See related IP

Figures are pre-silicon engineering-grade estimates for a Safety Element out of Context (SEooC); final ASIL sign-off is the integrator’s, supported under NDA. FMEDA and Safety Manual available under NDA.
