ESC DShot Controller

escdshot is a synthesizable SystemVerilog soft-IP that generates the DShot digital ESC (Electronic Speed Controller) protocol for brushless drone/UAV…

Request this IP →Browse the catalog

ASIL-B

target

92.50%

SPFM

90.00%

LFM

PASS

FMEDA

1.8K

gates

1.0.0

version

The deliverable

What you’re licensing

escdshot is a synthesizable SystemVerilog soft-IP that generates the DShot digital ESC (Electronic Speed Controller) protocol for brushless drone/UAV… It is delivered as a licensable soft-IP block engineered as an ASIL-B Safety Element out of Context — not just RTL, but the complete functional-safety work package needed to carry it into an ISO 26262 program:

Synthesizable RTL

Portable, vendor-neutral SystemVerilog that drops onto your existing SoC fabric — no foundry or EDA-tool lock-in.

Per-IP FMEDA report

SPFM / LFM / PMHF computed against the ASIL target per ISO 26262-5 — the quantitative analysis your assessor asks for.

Safety manual

Assumptions of use, the safety mechanisms and their diagnostic coverage — written to drop straight into your safety case.

IP-XACT + integration docs

A machine-readable descriptor plus register and integration documentation for fast, low-risk bring-up.

Self-checking testbench

A self-checking (crypto: bit-exact) testbench and a one-command build, so you can reproduce every claim on day one.

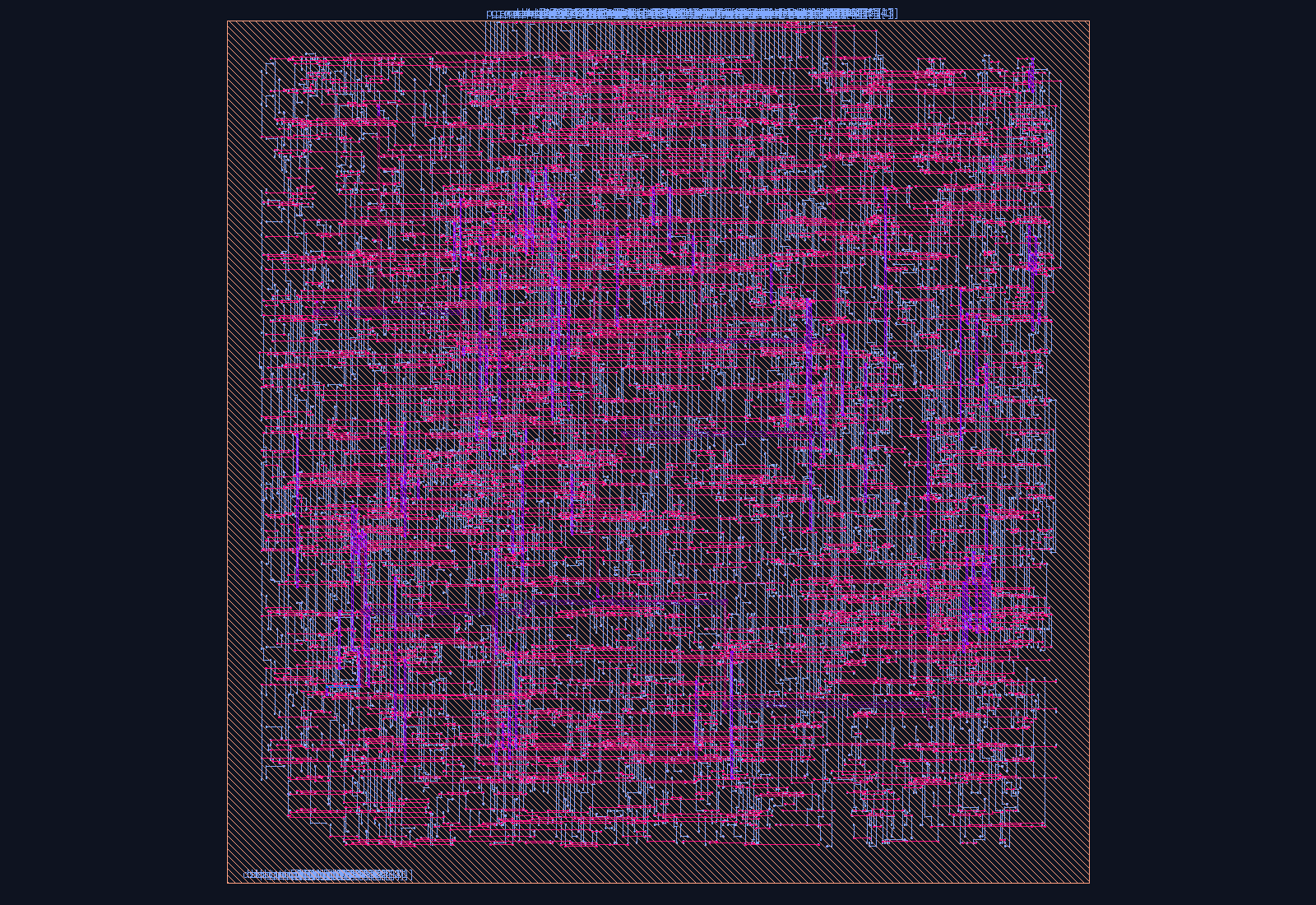

What it is

esc_dshot is a synthesizable SystemVerilog soft-IP that generates the DShot digital ESC (Electronic Speed Controller) protocol for brushless drone/UAV motor control, with optional bidirectional DShot eRPM-telemetry decode.

Key Features

DShot150/300/600/1200 + bidirectional eRPM decode
Per-frame CRC4 generate/check (\rightarrow) err_code 3
Config-register parity (err_code 1)
KEEP_ATTR DMR on the bit-timing counter (err_code 9)
Throttle-range + arming-interlock plausibility
Per-channel arm/throttle via APB4-lite

Standards & Compliance

DShot150/300/600/1200, bidirectional DShot eRPM

Functional Safety

ASIL-B (SEooC) · SPFM 92.50% · LFM 90.00% · PASS

ISO 26262:2018 · FMEDA available · Safety Manual included

Register Map

Offset	Register	Description
`0x00`	CTRL	[0]=EN [1]=TLM_EN (request telemetry bit in every frame) [3:2]=RATE (0=DShot150 1=300 2=600 3=1200) [4]=BIDIR_EN
`0x04`	STATUS	[0]=BUSY [1]=FRAME_DONE [2]=ARMED_ALL [3]=TLM_VALID (RO)
`0x08`	ARM	[NUM_MOTORS-1:0] per-channel arm enable (1=armed)
`0x0C`	DIVCFG	[15:0]=clocks-per-bit-period (overrides RATE table if non-zero)
`0x10`	THR0	[10:0]=channel-0 throttle (THR1..THRn at 0x14,0x18,… +4)

…3 more registers — see datasheet for the full table.

Getting Started

// Minimal instantiation
esc_dshot #(
  .ADDR_W(6)
) u_esc_dshot (
  .clk       (clk),
  .rst_n     (rst_n),
  // APB4
  .p_paddr   (paddr),
  .p_psel    (psel),
  .p_penable (penable),
  .p_pwrite  (pwrite),
  .p_pwdata  (pwdata),
  .p_prdata  (prdata),
  .p_pready  (pready),
  // Safety
  .err_clear (1'b0),
  .err_valid (err_valid),
  .err_code  (err_code)
);

Configure via the CTRL register after reset to enable the IP and set operating parameters. Monitor err_valid / err_code for any safety faults reported by the built-in safety monitor.
