focmotor is a Field-Oriented-Control (FOC) motor-control datapath for BLDC/PMSM machines (drone propulsion + industrial servo),

Request this IP →Browse the catalog

ASIL-B

target

91.60%

SPFM

88.41%

LFM

PASS

FMEDA

2.2K

gates

1.0.0

version

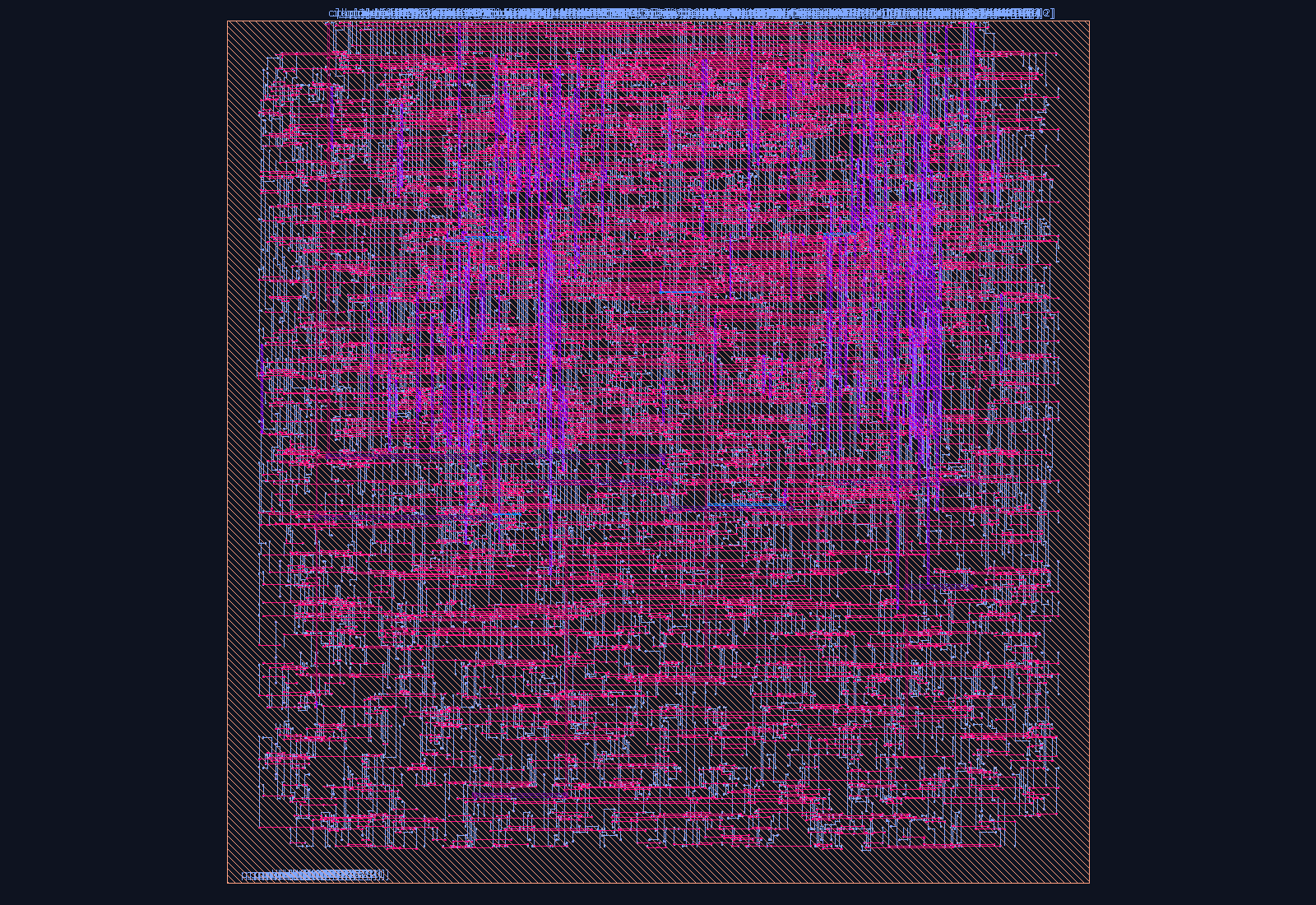

The deliverable

What you’re licensing

focmotor is a Field-Oriented-Control (FOC) motor-control datapath for BLDC/PMSM machines (drone propulsion + industrial servo), It is delivered as a licensable soft-IP block engineered as an ASIL-B Safety Element out of Context — not just RTL, but the complete functional-safety work package needed to carry it into an ISO 26262 program:

Synthesizable RTL

Portable, vendor-neutral SystemVerilog that drops onto your existing SoC fabric — no foundry or EDA-tool lock-in.

Per-IP FMEDA report

SPFM / LFM / PMHF computed against the ASIL target per ISO 26262-5 — the quantitative analysis your assessor asks for.

Safety manual

Assumptions of use, the safety mechanisms and their diagnostic coverage — written to drop straight into your safety case.

IP-XACT + integration docs

A machine-readable descriptor plus register and integration documentation for fast, low-risk bring-up.

Self-checking testbench

A self-checking (crypto: bit-exact) testbench and a one-command build, so you can reproduce every claim on day one.

What it is

foc_motor is a Field-Oriented-Control (FOC) motor-control datapath for BLDC/PMSM machines (drone propulsion + industrial servo), delivered as synthesizable SystemVerilog soft-IP with an APB4-lite control interface and built-in ISO 26262 (ASIL-B) safety instrumentation.

Key Features

Clarke (\rightarrow) Park (\rightarrow) dual-PI (\rightarrow) inv-Park (\rightarrow) SVPWM pipeline
Over-current + duty plausibility (\rightarrow) zero-duty safe-state (err_code 3)
Control-loop watchdog (err_code 4)
FOC-FSM + PI-integrator DMR (err_code 9)
Config parity over gains/limits (err_code 1)
Drives 3-phase PWM (pairs with mc_pwm)

Standards & Compliance

ISO 26262 (SEooC)

Functional Safety

ASIL-B (SEooC) · SPFM 91.60% · LFM 88.41% · PASS

ISO 26262:2018 · FMEDA available · Safety Manual included

Register Map

Offset	Register	Description
`0x00`	CTRL	[0]=EN [1]=RUN(closed-loop) [2]=CLR_FAULT(W1) 0x04 KP_D d-axis Kp (Q4.12)
`0x08`	KI_D	d-axis Ki (Q4.12) 0x0C KP_Q q-axis Kp (Q4.12)
`0x10`	KI_Q	q-axis Ki (Q4.12) 0x14 ID_SET d setpoint (Q1.15, signed)
`0x18`	IQ_SET	q (torque) setpoint (Q1.15, signed) 0x1C ILIM current envelope (\|i\|,\|set\|)
`0x20`	DUTYLIM	duty envelope (max \|duty\|, 0..DUTY_MAX) 0x24 POLES pole pairs (informational)

…4 more registers — see datasheet for the full table.

Getting Started

// Minimal instantiation
foc_motor #(
  .ADDR_W(6)
) u_foc_motor (
  .clk       (clk),
  .rst_n     (rst_n),
  // APB4
  .p_paddr   (paddr),
  .p_psel    (psel),
  .p_penable (penable),
  .p_pwrite  (pwrite),
  .p_pwdata  (pwdata),
  .p_prdata  (prdata),
  .p_pready  (pready),
  // Safety
  .err_clear (1'b0),
  .err_valid (err_valid),
  .err_code  (err_code)
);

Configure via the CTRL register after reset to enable the IP and set operating parameters. Monitor err_valid / err_code for any safety faults reported by the built-in safety monitor.

Applications

Where it fits

Typically deployed in motor drives, power conversion, and sensor front-ends in automotive and industrial systems.

The case

Why license it, not build it

Skip 12–18 months

The FMEDA and the safety case are already generated. You integrate a finished safety element — you don’t stand up a safety-IP program to originate one.

One vendor, one safety story

Every block in the catalog shares the same safety architecture, fault-reaction model, and FMEDA methodology — so subsystems roll up cleanly.

Verified, not vapor

The RTL builds and passes today; the safety metrics come from analysis and fault injection against real RTL, not a datasheet promise.

Interested in FOC Motor Controller?

Pricing, the per-IP FMEDA, safety manual, and RTL data room are shared under a mutual NDA.

Talk to us →See related IP

Figures are pre-silicon engineering-grade estimates for a Safety Element out of Context (SEooC); final ASIL sign-off is the integrator’s, supported under NDA. FMEDA and Safety Manual available under NDA.
