OBI to TL-UL Bridge

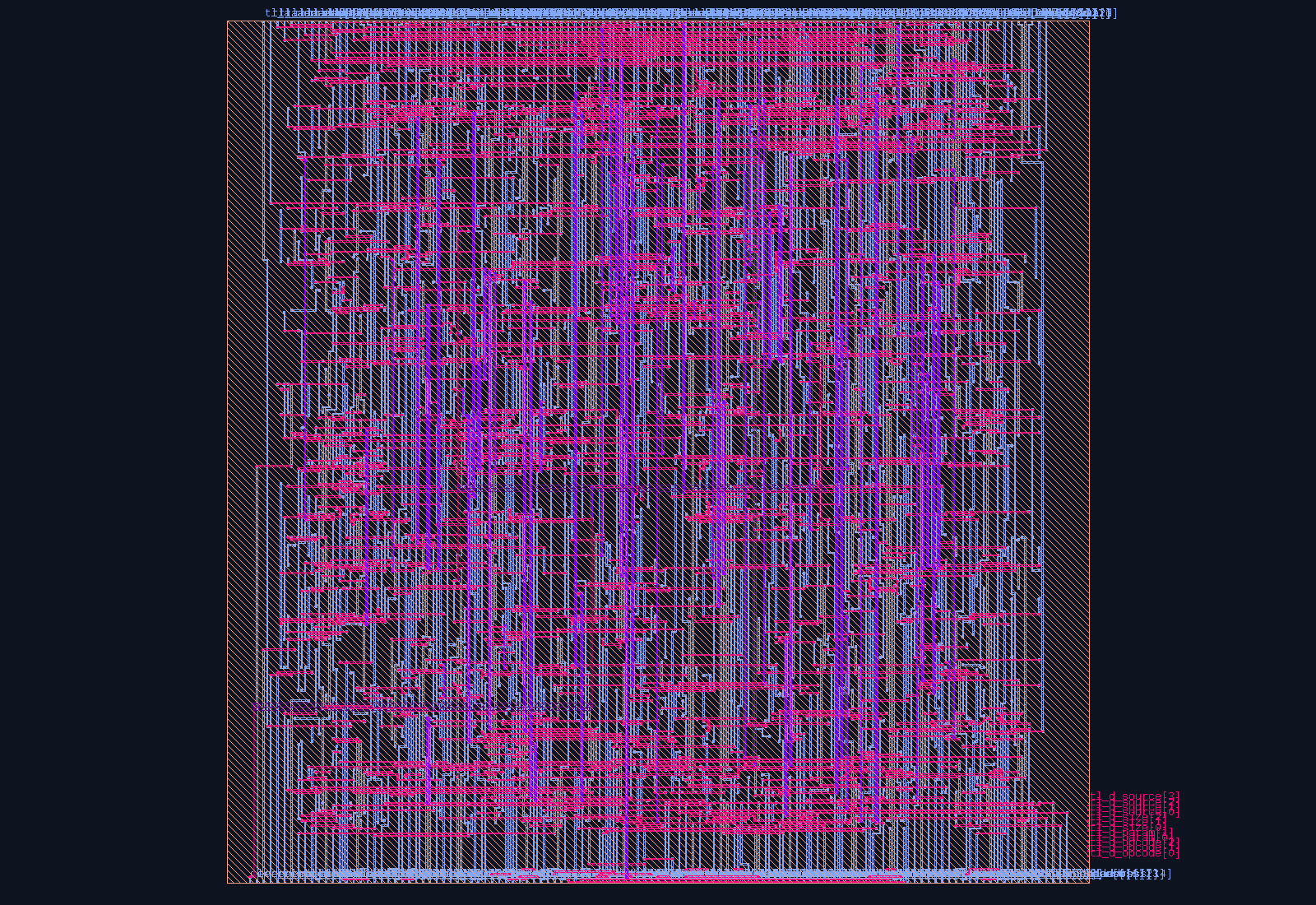

Overview

obi_to_tl_ul is a lightweight, single-outstanding-transaction bridge that connects an OBI (Open Bus Interface v1.5) master — typically an OpenHW CV32E40S / CV64A RISC-V core — to a TileLink Uncached Lightweight (TL-UL) interconnect fabric.

Key Features

• Single-outstanding OBI req/gnt ↔︎ TL-UL a_valid/a_ready + d_valid/d_ready mapping via a three-state FSM (ST_IDLE→ST_REQ→ST_RESP); the OBI grant is purely combinational (obi_gnt_o = ST_IDLE) for latency-optimal accept
• Opcode mapping: we=0 → GET(4); we=1, be=4’hF → PutFullData(0); we=1, partial be → PutPartialData(1); a_size fixed at 3’d2 (32-bit word), a_param always 3’b000
• Single clock domain, no CDC — verified directly against the RTL port list: one clk/rst_n pair drives every register, including both diverse-DMR shadows; a differing TL-UL fabric clock requires an external CDC shim upstream of this bridge
• Even parity on the latched request (addr_q/we_q/be_q grouped, plus wdata_q) — err_code 1 catches an upset that would otherwise silently corrupt an address, flip a write into a read, or corrupt a byte mask
• Diverse-DMR FSM lockstep: an independent next-state cone recomputes state_cmpl_q = ~state_q and flags any divergence from the live FSM — err_code 9
• Outstanding-request timeout watchdog (TIMEOUT_CYCLES, default 256 cycles) on the ST_REQ/ST_RESP window — err_code 4 catches a hung TL-UL target instead of stalling the OBI master forever
• Diverse-DMR read-data-forward shadow (obi_rdata_cmpl = ~tl_d_data, decoded on an independent path) closes the same-cycle obi_rdata_o = tl_d_data pass-through’s single-point gap with zero added read latency — err_code 2; TL-D d_corrupt/d_denied also forward to obi_err_o and the monitor as err_code 5/6

Standards & Compliance

OpenHW Group OBI v1.5; TileLink Uncached-Lightweight (TL-UL); ISO 26262 ASIL-B SEooC (SPFM 90.75%, LFM 89.34%, PMHF 7.70×10⁻¹⁰/h)

Functional Safety

ASIL-B (SEooC) · SPFM 90.75% · LFM 89.34% · PASS

ISO 26262:2018 · FMEDA available · Safety Manual included

Register Map

See datasheet for full register reference.

Getting Started

// Minimal instantiation
obi_to_tl_ul #(
  .ADDR_W(6)
) u_obi_to_tl_ul (
  .clk       (clk),
  .rst_n     (rst_n),
  // APB4
  .p_paddr   (paddr),
  .p_psel    (psel),
  .p_penable (penable),
  .p_pwrite  (pwrite),
  .p_pwdata  (pwdata),
  .p_prdata  (prdata),
  .p_pready  (pready),
  // Safety
  .err_clear (1'b0),
  .err_valid (err_valid),
  .err_code  (err_code)
);

Configure via the CTRL register after reset to enable the IP and set operating parameters. Monitor err_valid / err_code for any safety faults reported by the built-in safety monitor.
