PSI5 Sensor Interface Receiver

A configurable PSI5 (Peripheral Sensor Interface 5) receiver delivered as synthesizable SystemVerilog soft-IP.

Request this IP →Browse the catalog

ASIL-B

target

93.50%

SPFM

90.00%

LFM

PASS

FMEDA

1.4K

gates

1.1.0

version

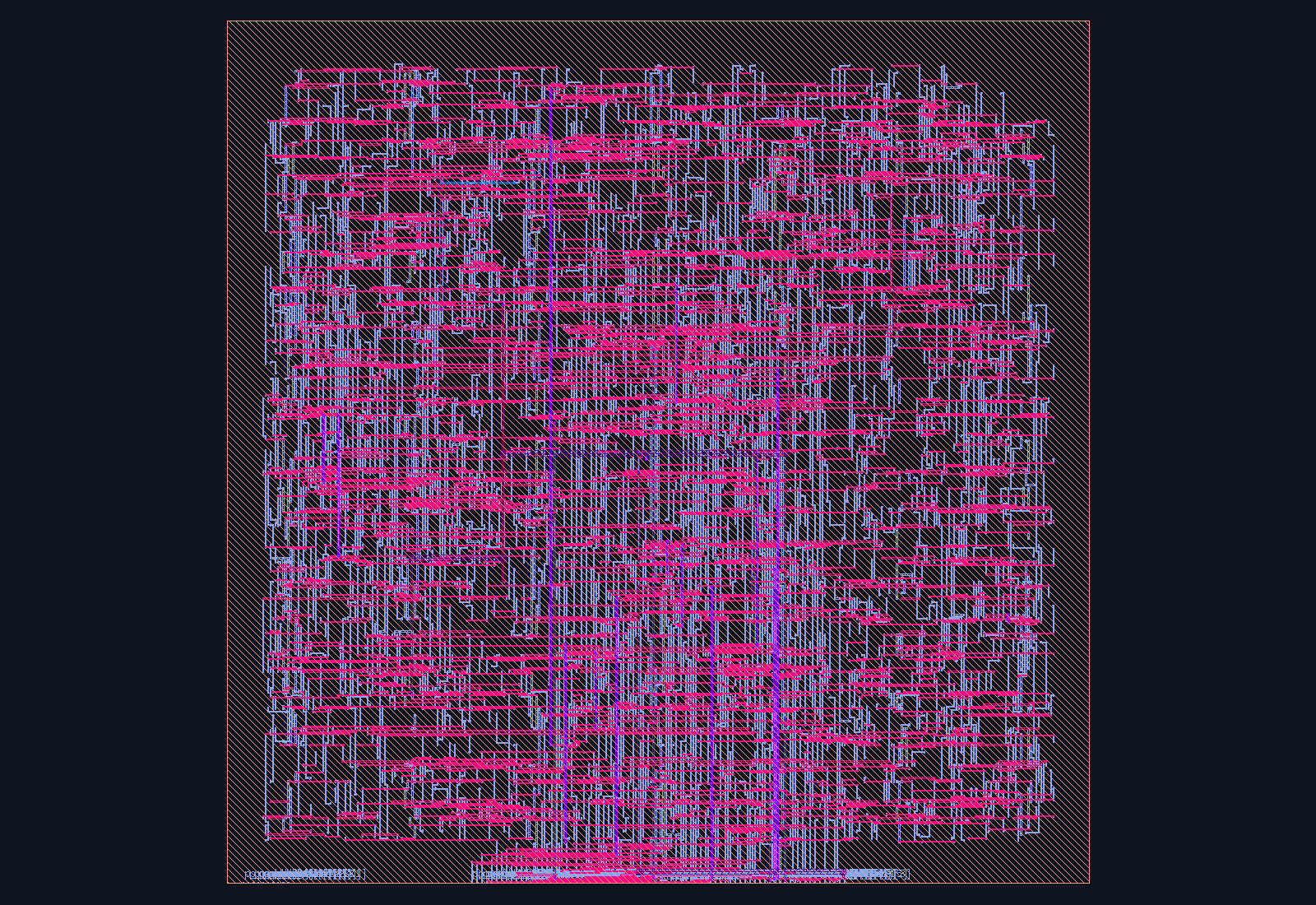

The deliverable

What you’re licensing

A configurable PSI5 (Peripheral Sensor Interface 5) receiver delivered as synthesizable SystemVerilog soft-IP. It is delivered as a licensable soft-IP block engineered as an ASIL-B Safety Element out of Context — not just RTL, but the complete functional-safety work package needed to carry it into an ISO 26262 program:

Synthesizable RTL

Portable, vendor-neutral SystemVerilog that drops onto your existing SoC fabric — no foundry or EDA-tool lock-in.

Per-IP FMEDA report

SPFM / LFM / PMHF computed against the ASIL target per ISO 26262-5 — the quantitative analysis your assessor asks for.

Safety manual

Assumptions of use, the safety mechanisms and their diagnostic coverage — written to drop straight into your safety case.

IP-XACT + integration docs

A machine-readable descriptor plus register and integration documentation for fast, low-risk bring-up.

Self-checking testbench

A self-checking (crypto: bit-exact) testbench and a one-command build, so you can reproduce every claim on day one.

What it is

A configurable PSI5 (Peripheral Sensor Interface 5) receiver delivered as synthesizable SystemVerilog soft-IP. PSI5 is a two-wire, current-loop automotive sensor interface used heavily in airbag, chassis, and powertrain systems: the sensor is powered over the loop and sends Manchester-coded data by modulating loop current.

Key Features

PSI5 synchronous and asynchronous receive modes
Manchester decode with start/data/status/CRC framing
Frame-period counter for synchronous power-line timing
Diverse-DMR FSM lockstep (err_code 9)
Config-register parity (err_code 1)
Formal FSM safety-invariant proof (SymbiYosys + z3)

Standards & Compliance

PSI5 v2.0, PSI5-S (synchronous variant)

Functional Safety

ASIL-B (SEooC) · SPFM 93.50% · LFM 90.00% · PASS

ISO 26262:2018 · FMEDA available · Safety Manual included

Register Map

Offset	Register	Description
`0x00`	CTRL	0x04 STATUS 0x08 BITDIV 0x0C CFG 0x10 DATA (bits [15:0])
`0x14`	DATA_HI	(bits [27:16], upper 12 bits for 17-28 bit configs)
`0x18`	SYNCPER	0x20 IER 0x24 ISR 0x28 ERR

Getting Started

// Minimal instantiation
psi5 #(
  .ADDR_W(6)
) u_psi5 (
  .clk       (clk),
  .rst_n     (rst_n),
  // APB4
  .p_paddr   (paddr),
  .p_psel    (psel),
  .p_penable (penable),
  .p_pwrite  (pwrite),
  .p_pwdata  (pwdata),
  .p_prdata  (prdata),
  .p_pready  (pready),
  // Safety
  .err_clear (1'b0),
  .err_valid (err_valid),
  .err_code  (err_code)
);

Configure via the CTRL register after reset to enable the IP and set operating parameters. Monitor err_valid / err_code for any safety faults reported by the built-in safety monitor.

Applications

Where it fits

Typically deployed in in-vehicle networks, industrial gateways, and sensor/actuator links where a bus controller has to carry its own safety argument.

The case

Why license it, not build it

Skip 12–18 months

The FMEDA and the safety case are already generated. You integrate a finished safety element — you don’t stand up a safety-IP program to originate one.

One vendor, one safety story

Every block in the catalog shares the same safety architecture, fault-reaction model, and FMEDA methodology — so subsystems roll up cleanly.

Verified, not vapor

The RTL builds and passes today; the safety metrics come from analysis and fault injection against real RTL, not a datasheet promise.

Interested in PSI5 Sensor Interface Receiver?

Pricing, the per-IP FMEDA, safety manual, and RTL data room are shared under a mutual NDA.

Talk to us →See related IP

Figures are pre-silicon engineering-grade estimates for a Safety Element out of Context (SEooC); final ASIL sign-off is the integrator’s, supported under NDA. FMEDA and Safety Manual available under NDA.
