Remote ID Broadcaster

ASTM F3411 / FAA Part 89 Remote-ID broadcast framing engine — plausibility-checked, cadence-verified, ASIL-B.

Request this IP →Browse the catalog

ASIL-B

target

91.00%

SPFM

89.01%

LFM

PASS

FMEDA

3.5K

gates

1.0.0

version

Interfaces at a glance

Block diagram

Place-and-route snapshot

Physical implementation

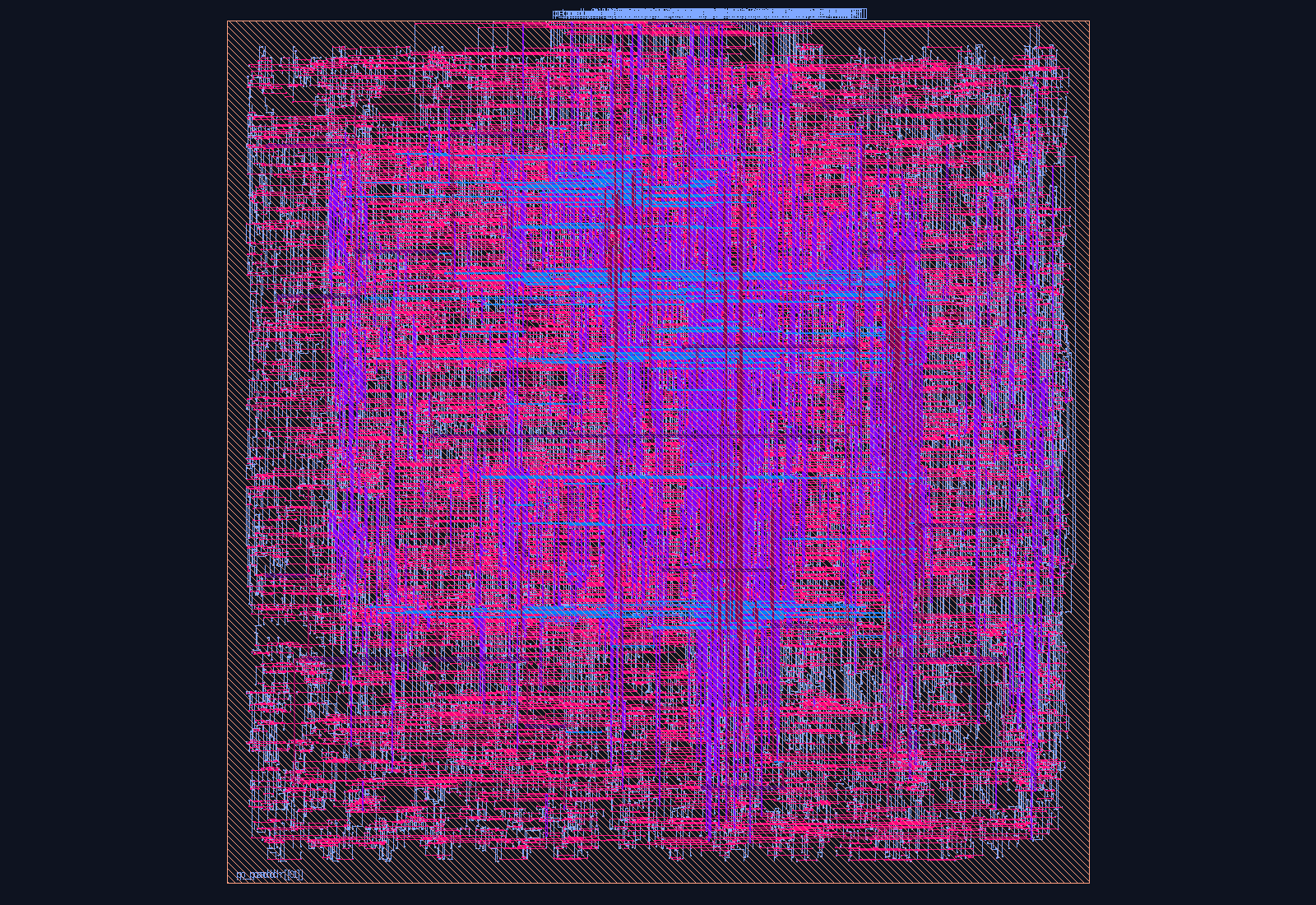

Remote ID Broadcaster routed place-and-route layout on the Nangate45 PDK — A real synthesis and place-and-route pass on this RTL, routed on the open Nangate45 / FreePDK45 PDK — evidence the block closes physically, not just in simulation. Target-PDK timing, area, and power sign-off figures are shared under NDA.

The deliverable

What you’re licensing

ASTM F3411 / FAA Part 89 Remote-ID broadcast framing engine — plausibility-checked, cadence-verified, ASIL-B. It is delivered as a licensable soft-IP block engineered as an ASIL-B Safety Element out of Context — not just RTL, but the complete functional-safety work package needed to carry it into an ISO 26262 program:

Synthesizable RTL

Portable, vendor-neutral SystemVerilog that drops onto your existing SoC fabric — no foundry or EDA-tool lock-in.

Per-IP FMEDA report

SPFM / LFM / PMHF computed against the ASIL target per ISO 26262-5 — the quantitative analysis your assessor asks for.

Safety manual

Assumptions of use, the safety mechanisms and their diagnostic coverage — written to drop straight into your safety case.

IP-XACT + integration docs

A machine-readable descriptor plus register and integration documentation for fast, low-risk bring-up.

Self-checking testbench

A self-checking testbench and a one-command build, so you can reproduce every claim on day one.

1. Overview

remote_id is an ASTM F3411 / FAA Remote-ID broadcast-message framing engine. It accepts drone telemetry over an APB4-lite slave, frames it into the 25-byte ASTM F3411 message set (header + 24-byte body), and emits the result as a byte stream on a tx_byte/tx_valid handshake for an external BLE/Wi-Fi beacon MAC.

Key Features

Frames the full ASTM F3411 broadcast set — Basic-ID, Location/Vector, System, Operator-ID — plus the Message-Pack container into byte-accurate 25-byte frames (1-byte header + 24-byte body)
APB4-lite telemetry config (lat/lon/alt/speed/heading/status/UAS-ID/operator-ID/timestamp) with software- or watchdog-triggered broadcast on a configurable regulatory cadence
Field-plausibility gate (err_code 3): rejects out-of-range latitude/longitude, an invalid message-type/protocol-version, or an oversize UAS-ID before it is ever framed — plausibility, not cryptographic authenticity
Broadcast-cadence watchdog (err_code 4): latches a fault if no frame completes within the configured regulatory interval, catching a broadcast that silently stopped
Config-register even parity (err_code 1) across the full telemetry field set, guarding against SEU corruption of the broadcast payload
KEEP_ATTR duplicate-DMR on the framing FSM and byte-emit counter (err_code 9) protects the framing engine itself against an internal SEU
fi_cfg_par / fi_plaus / fi_cadence / fi_fsm_dmr DFT fault-inject inputs prove each mechanism in silicon test; single clock domain, radio-agnostic tx_byte/tx_valid handshake to any BLE/Wi-Fi beacon MAC

Standards & Compliance

ASTM F3411; FAA Remote ID (14 CFR Part 89); EU U-space / EASA equivalent; ISO 26262 ASIL-B SEooC, engineering-FMEDA PASS (SPFM 91.00%, LFM 89.01%, PMHF 5.87×10⁻⁹/h, pre-sign-off)

Functional Safety

ASIL-B (SEooC) · SPFM 91.00% · LFM 89.01% · PASS

ISO 26262:2018 · FMEDA available · Safety Manual included

Register Map

Offset	Register	Description
`0x00`	CTRL	RW [0]=EN [1]=GO(self-clear, force one broadcast) [2]=WD_EN
`0x04`	STATUS	RO [0]=BUSY [1]=FRAME_RDY [3:2]=fsm_state [6:4]=msg_sel [7]=ERR_VALID [11:8]=ERR_CODE [23:16]=byte_count
`0x08`	MSG_HDR	RW [3:0]=protocol_version [7:4]=message_type(active) [12:8]=ua_type [16]=id_type [21:17]=msg_qty(pack) [28:24]=uas_i…
`0x0C`	BASIC	RW [3:0]=op_status [7:4]=loc_flags (location body[0] fields)
`0x10`	LAT	RW [31:0] latitude (signed, degrees * 1e7)

…20 more registers — see datasheet for the full table.

Getting Started

// Minimal instantiation
remote_id #(
 .ADDR_W(6)
) u_remote_id (
 .clk (clk),
 .rst_n (rst_n),
 // APB4
 .p_paddr (paddr),
 .p_psel (psel),
 .p_penable (penable),
 .p_pwrite (pwrite),
 .p_pwdata (pwdata),
 .p_prdata (prdata),
 .p_pready (pready),
 // Safety
 .err_clear (1'b0),
 .err_valid (err_valid),
 .err_code (err_code)
);

Configure via the CTRL register after reset to enable the IP and set operating parameters. Monitor err_valid / err_code for any safety faults reported by the built-in safety monitor.

Applications

Where it fits

Typically deployed in UAV flight controllers and robotics platforms operating under a functional-safety mandate.

The case

Why license it, not build it

Skip 12–18 months

The FMEDA and the safety case are already generated. You integrate a finished safety element — you don’t stand up a safety-IP program to originate one.

One vendor, one safety story

Every block in the catalog shares the same safety architecture, fault-reaction model, and FMEDA methodology — so subsystems roll up cleanly.

Verified, not vapor

The RTL builds and passes today; the safety metrics come from analysis and fault injection against real RTL, not a datasheet promise.

Interested in Remote ID Broadcaster?

Pricing, the per-IP FMEDA, safety manual, and RTL data room are shared under a mutual NDA.

Talk to us →See related IP

Figures are pre-silicon engineering-grade estimates for a Safety Element out of Context (SEooC); final ASIL sign-off is the integrator’s, supported under NDA. FMEDA and Safety Manual available under NDA.
